ISO 6000mm 100mm UNS S2507 Cold Rolled Steel Plate

  • 1
  • 2

Brand Name : METAL

Model Number : UNS S2507 Steel Plate

Certification : ISO/PED/TUV/SGS/LR/BV

Place of Origin : China/Japan/Germany

MOQ : 300 Kilogram/Kilograms

Price : US $ 10 - 100 / Kilogram

Payment Terms : L/C, T/T

Supply Ability : 50 Metric Ton/Metric Tons per Month

Delivery Time : 20 working days

Packaging Details : In bulk in bundles plastic outside in bundles as customer's request.

Product Name : UNS 32750 Steel Plate

Surface : 2B , BA , NO.1 , NO.4 , 8K mirror

Grade : Duplex Stainless Steel

Thickness : 0.6-100mm

Standard : ASTM, AISI, DIN, EN, GB

Width : 1500-2000MM

Application : Various Applications

Technology : Plate, Hot Rolled / Cold Rolled

Length : 2000-6000mm

Contact Now

UNS S2507 Polished Stainless Steel Plate / Duplex Steel Plate / Sheet

Quick Details

Grade:
Duplex Stainless
Steel
 Standard: ASTM, AISI, DIN, EN, JIS Length: 2000-6000mm
Thickness: 0.6-100mm Width: 1500-2000MM Place of Origin:
Shanghai,
China (Mainland)
Brand Name: METAL Model Number: Duplex Steel Type:
Plate, Hot Rolled /
Cold Rolled

Packaging & Delivery

Packaging Details: Standard export seaworthy packing or a required
Delivery Detail: 5-15 days

Specs: 2507 (UNS S32750) A 25Cr Duplex Stainless Steel

Alloy 2507 (UNS S32750) is a super duplex stainless steel with 25% chromium, 4% molybdenum, and 7% nickel designed for demanding applications which require exceptional strength and corrosion resistance, such as chemical process, petrochemical, and seawater equipment. The steel has excellent resistance to chloride stress corrosion cracking, high thermal conductivity, and a low coefficient of thermal expansion. The high chromium, molybdenum, and nitrogen levels provide excellent resistance to pitting, crevice, and general corrosion.

General Properties

  • Alloy 2507 is a super duplex stainless steel with 25% chromium, 4% molybdenum, and 7% nickel designed for demanding applications which require exceptional strength and corrosion resistance, such as chemical process, petrochemical, and seawater equipment. The steel has excellent resistance to chloride stress corrosion cracking, high thermal conductivity and a low coefficient of thermal expansion. The high chromium, molybdenum, and nitrogen levels provide excellent resistance to pitting, crevice, and general corrosion.

  • The impact strength is also high. Alloy 2507 is not recommended for applications which require long exposures to temperatures above 570°F because of the risk of a reduction in toughness.

Standards

  • ASTM/ASME .......... A240 - UNS S32750
  • EURONORM............ 1.4410 - X2 Cr Ni MoN 25.7.4
  • AFNOR.................... Z3 CN 25.06 Az

Applications

  • Pressure vessels, tanks, piping, and heat exchangers in the chemical processing industry
  • Piping, tubing, and heat exchangers for the handling of gas and oil
  • Effluent scrubbing systems
  • Pulp and paper industry digesters, bleaching equipment, and stock-handling systems
  • Rotors, fans, shafts, and press rolls requiring combined strength and corrosion resistance
  • Cargo tanks for ships and trucks
  • Food processing equipment
  • Biofuels plants

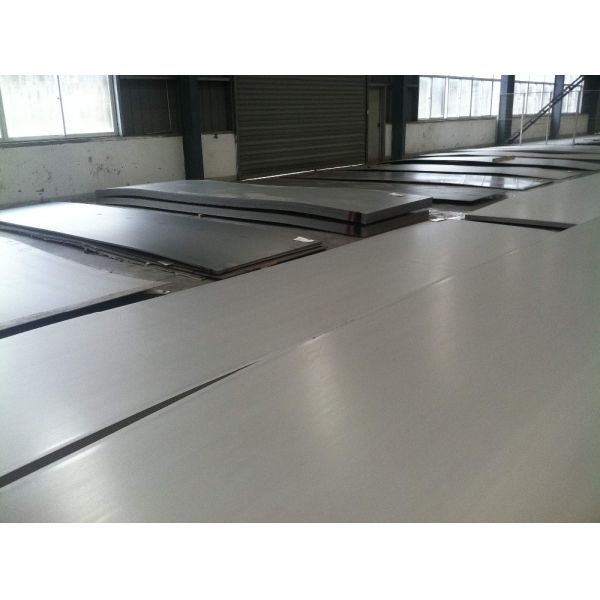

Products photo

Detailed description of super duplex stainless steel uns 32750 / uns 32760

Chemical composition of super duplex stainless steel uns 32750 / uns 32760


Material Code		 Mass percent(%)
C Si Mn P S Cr Ni Mo N
2101(S32101,1.4162) ASTM ≤0.040 ≤1.00 4.00-6.00 ≤0.040 ≤0.030 21.0-22.0 1.35-1.70 0.1-0.8 0.20-0.25
Typicalvalue 0.028 0.071 5.03 0.028 0.001 21.5 1.55 0.3 0.22
2304(S32304,1.462) ASTM ≤0.030 ≤1.00 ≤2.50 ≤0.040 ≤0.030 21.5-24.5 3.0-5.5 0.05-0.60 0.05-0.20
Typicalvalue 0.026 0.5 1.28 0.028 0.001 23.5 4.05 0.3 0.12

2205
(S31803,S32205,

1.4462)

 ASTM a ≤0.030 ≤1.00 ≤2.00 ≤0.030 ≤0.020 21.0-23.0 4.5-6.5 2.5-3.5 0.08-0.20
ASTM b ≤0.030 ≤1.00 ≤2.00 ≤0.030 ≤0.020 22.0-23.0 4.5-6.5 3.0-3.5 0.14-0.20
Typicalvalue 0.025 0.55 1.2 0.028 0.001 22.1 5.10 3.10 0.17
2507(S32750,1.4410) ASTM ≤0.030 ≤1.00 ≤1.20 ≤0.035 ≤0.020 24.0-26.0 6.0-8.0 3.0-5.0 0.24-0.32
Typicalvalue 0.026 0.55 0.78 0.028 0.001 25.5 7.40 4.10 0.28

Mechanical Properties of super duplex stainless steel uns 32750 / uns 32760

Material Code Rp0.2/MPa Rm/MPa A/% HB
2101(S32101,1.4162) ASTM ≥450 ≥620 ≥25 ≤293
Typicalvalue 530 720 33 240
2304(S32304,1.4362) ASTM ≥400 ≥600 ≥25 ≤293
Typicalvalue 520 710 35 245
2205(S31803.
S32205.1.4462)		 ASTMa ≥450 ≥620 ≥25 ≤293
ASTMb ≥450 ≥655 ≥25 255
Typicalvalue 550 750 33 ≤293
2507(S32750.1.4410) ASTM ≥550 ≥795 ≥15 260
Typicalvalue 580 850 31 ≤310
